CONSTRUCTION SECTOR

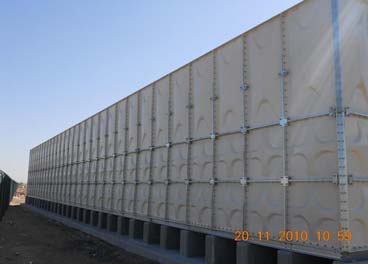

GRP HOT PRESSED SECTIONAL PANEL WATER TANK

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uaeFiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

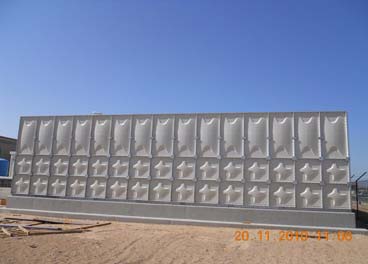

3rd Largest GRP Hot press Tank in U.A.E
Eissa Fiber Glass who are one of the foremost innovators and leaders in GRP products in the U.A.E. have been installing Hot Press GRP Sectional Tanks. GRP Hot Press Panels which are molded from Sheet Molding Compound (SMC) comprising “E”glass fiber reinforcement and formulation of selected resins (Isophthalic Unsaturated polyester).GRP Hot Press Panels are manufactured using SMC Hot Pressed Molding Technology with high pressure molding at 150°C thus creating a strong, uniform and stable panel construction. These tanks are having many advantages like its strength and durability, easy cleaning & maintenance, drains completely at roof and bottom, prevents leakage and algae growth.

Type of Hot Press pannel Tank

There are two types of Hot Press panel tanks:
  • Insulated Panel Tanks: are with technical perfection using strict processing method incoporating sandwitch construction technique using rigid polyurethane foam as core. It have a unique shape and design. Bottom Panels, Side Panels, Top Panels, Manhole Frame, Cover Panels, Drain Panels and Partition Panels are provided with well designed shape to withstand high strength, resist huydrostatic pressure, distortion, high impact and shock
  • Non Insulated Panel Tanks: Without insulation inside the structure of panel tanks and using a special foam as core



Special Features

Special Features

  • Strong & durable as panels are made of pure fiberglass .
  • Prevent leakage completely by using special sealing materials.
  • Prevent algae and fungus growth in the tank, anti earthquake structure realized by using strong panels and reinforcement materials.
  • Various sizes of tanks are available by combination of strong panels to accommodate in the available space.
  • Panel Tanks are molded with technical perfection using strict processing method incorporating sandwitch constuction technique using rigid polyurethane foam in the core.



Pannel Tank Installation Process

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

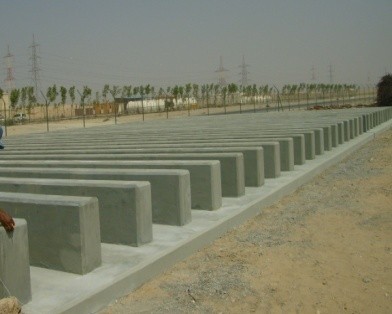

Foundation of Base Panel
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

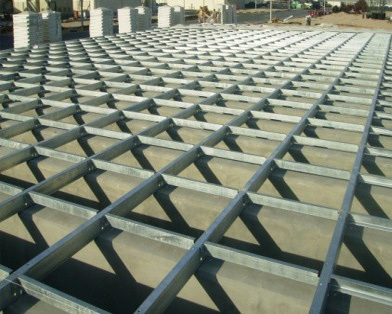

Steel skid
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

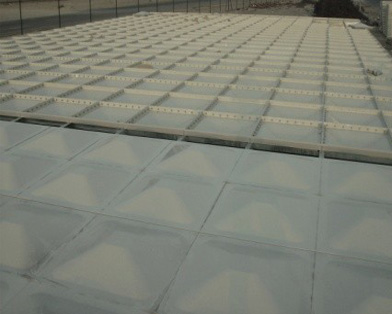

Bottom Panel Installation-1
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

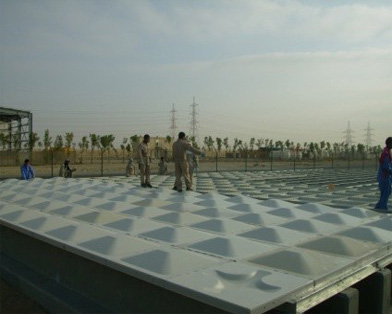

Installation -2
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

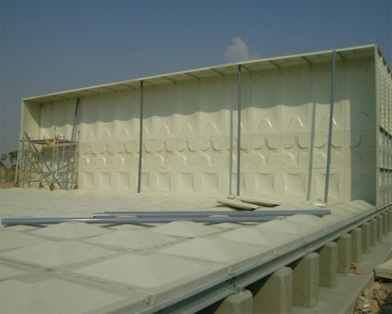

Installation -3
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

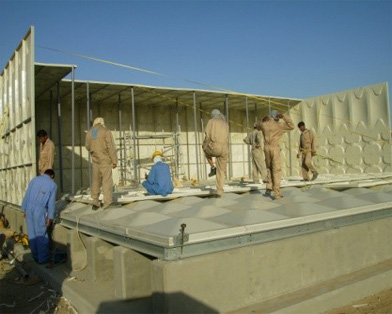

Installation-4
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

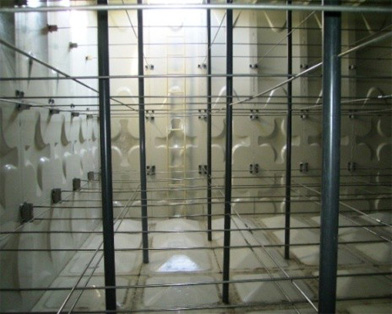

Reinforcement with SS304 tie rod
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

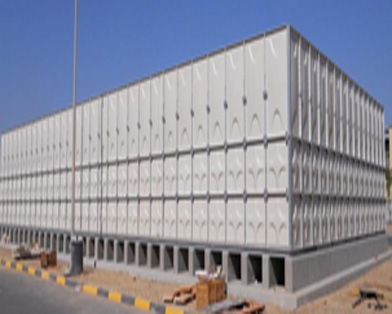

GRP Panel Tank Completion

GRP COLD PRESS MOLDED PANEL TANK

Types of Cold Press Molded Pannel Tank

There are two types of Cold Press panel tanks:
  • Insulation: Standard Panel Tanks are available in insulated and non-insulated types. In the Insulated panels polyurethane foam is added in the middle layer during manufacturing process
  • Non-Insulation:Without insulation inside the structure of panel tanks and using a special foam as core.

Features

  • Double smooth skin panel tanks which are made from Glass Reinforced Polyester (GRP).
  • Better and safer for potable water than concrete and steel tanks.
  • Do not rust.
  • Do not need paint.
  • Prevent growth of Bacteria.
  • Easy to clean and repair.
  • Lighter in weight.
  • Safe for drinking water.
GRP CYLINDRICAL MOULDED WATER TANK

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

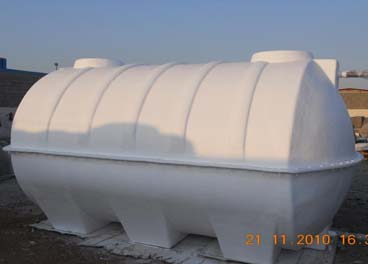

20,000 U.S GALLON GRP CYLINDRICAL WATER TANK
EFG make fiberglass potable and industrial water tanks are high quality standards, which are manufactured. They are strong, durable and can resist any bacterial algae and fungus to provide clean drinking water. EFG tanks are made of best quality food grade polyester resin. These tanks are available from a wide range of capacity. The water tanks are manufactured under strictly hygienic conditions and are designed to ensure that there is no accumulation of dirt, dust and algae formation on the contact skin of the tank with water. EFG make tanks are not affected by ultra violet rays and have excellent weathering properties and easy maintenance.

Specifications

The following manufacturing specifications are generally followed by “Eissa Fiber Glass LLC".

  • Gelocat of 0.5mm thickness to provides chemical resistance. Our general color of gel coat is white. Any other color if required, available on request.
  • Resin content 60-70% by weight to assist reinforcement for chopped strand mat.
  • Resin content 45-55% to provide strength and rigidity for woven roving.
  • E-glass surface mat (450gms/m2) or synthetic layers are used consisting of approximately 90% resin by weight. Thickness of the reinforced layers is generally 0.5mm. This protective barrier against corrosion.
  • Gelcoat finishing on outside the tank.
  • For joints provided GRP putty and chopped stand mat cover with Gelcoat.
  • Structure of the tank includes 1mm thick Gelcoat interior finishing, a surface mat is provided to protect inner coating. Adequate layers of fiber-mat and woven roving layers will be applied according to the thickness using required resin and chemicals to suit the usage of tank. The cover coat will be given with waxed coating to get clear look.
  • The external surface of tank is top coated with wax added UV top coat polyester resin. Tank body (Laminate) thickness is manufacture by using UV resistance polyester resin. These provided UV resistance to the tanks.
  • Tanks have special layer inside the tank wall using vinylister resin with fiber which provides protection as a chemical resistance.
  • After building up the tank wall layers of fiber glass chopped strand mat impregnated with polyester resin applied. Further laminations are built on this special layer to complete the tank wall thickness.
  • Tank includes inlet, outlet, overflow, grain, vent and manholes. All tanks will have provisions for fixing standard connectors .Connectors will be provided along with tank only on request.

Features

  • Smooth finish to prevent Algae Growth.
  • Fully cured to prevent styrene emission.
  • Low thermal Conductivity.
  • Sound Structural Properties.
  • Flexible in size, shape and capacity.
  • Preferable for local conditions.
  • Repairable.
  • Ultra Violet Ray Resistant.

Type of Cylindrical Moulded Water Tank

Cylindrical Tanks are of two types (Retto Add Different Size of Tank Photoes)

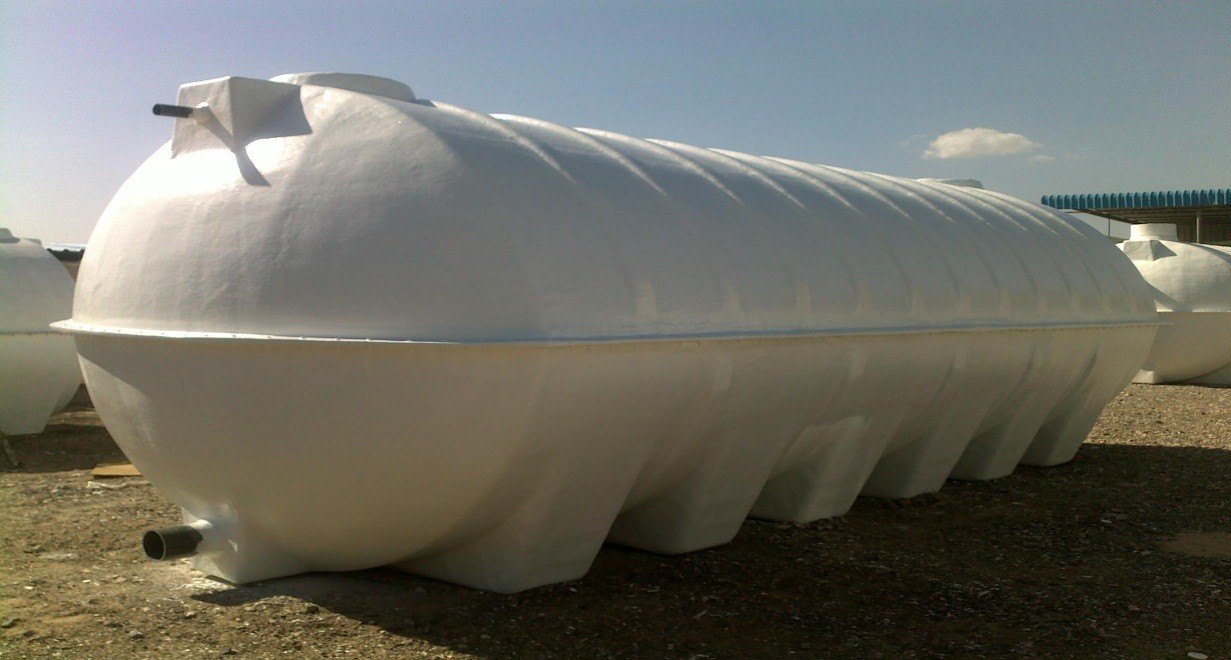

  • CYLINDRICAL- HORIZONTAL TANKS

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

These tanks are cylindrical and sectional in shape containing a horizontal leg. Our tanks are atmospheric steel tanks intended for aboveground & underground storage of non-corrosive, stable, highly inflammable and combustible liquids that have a specific gravity not exceeding that of water. They are well equipped with stationary support saddles, anti roll supports and structural skids. We provide excellence in our services and qualitative tanks to the world wide. Our industrial expertise allows us to offer leak-proof horizontal tanks in different configurations, as per the definite requirements of our clients .


Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

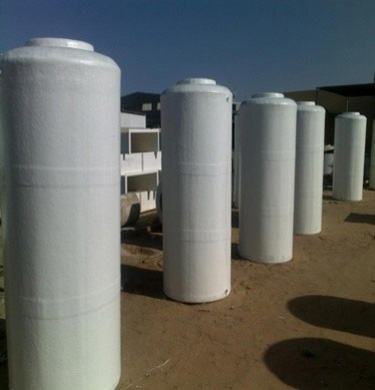

CYLINDRICAL-VERTICAL TANKS

We offer a wide range of vertical cylindrical tanks that are offered in various specifications like capacity, outer diameter, height, weight etc. These tanks are available in different shapes and can easily withstand hydraulic pressure of contained liquid. These Storage Tanks find extensive application in chemical and pharmaceutical industries.

Tank lamainate Properties

  • Glass Content : (32.5 +,- 5)%
  • Barcol Hardness : > 40
  • Water Absorption : > 0.2%
  • Tensile Strength : > 100 N/mm 2
  • Flexural Strength : > 165 N/mm 2Lap
  • Shear Strength : > 7 N/mm 2

GRP UNDER GROUND SEPTIC TANK & HOLDING TANK

Features

  • Septic Tanks are specially designed and manufactured for underground use to withstand the extreme corrosive soil conditions and environments.
  • Smooth internal black coating prevents bacteria and algae growth inside the tank.
  • Four or more layers (according to tank size) of fiber mat for better strength.
  • Inlet, outlet and drain connections for easy installation.

Method Specifications

  • Septic Tanks and Soak Aways are available in capacities ranging from 300 U.S. Gallons to 20,000 U.S Gallons. They are available in diameters ranging from 1 to 2.80m to suit the exact requirements of various locations.
  • Septic Tanks are specially designed and manufactured for underground use to withstand the extreme corrosive soil conditions and environments. They can be installed even in extreme condition such as areas where sub oil water is very high. They are designed and molded to suit most of the corrosive chemicals present in the sewage and withstand high degree bacteriological action.
  • Septic Tanks are provided with digestive chambers, manholes and piping system to enable the sewage to get digested efficiently and lighter effluent passes in to the soak away where it under goes utmost absorption within the soak away material itself and the areas surrounding it.
  • Septic Tanks & Soak Aways confirm to relevant municipality specifications and practices. They are manufactured, designed and installed as per approvals from Municipalities of the Gulf.
  • Septic Tanks and Soak Away are economical, available quickly and installed with minimum cost. They are self-pigmented, corrosion proof and stabilized offering excellent resistance to corrosive soils. They are free from maintenance.

Method of Statement

  • Excavate the land where bury the tank as per the dimension of the tank.
  • Use sand for filling the tank.
  • Firstly fill the sand in both sides equally.
  • After completed the side filling only cover the tank completely with sand. We recommend 30 cm to 40 cm sand on top of the tank.
  • Vehicle is not allowed to pass through the buried tank.
  • Do not use mud for burring the tank because if the tank over flowing, mud will become wet and increase the load, will not sustain the tank.
  • For making manhole on top of the tank, first apply minimum 4" thick concrete then start brick work.
  • Do not allow to over soak the tank.
  • Remove waste water periodically.
  • Do not remove Air-Vent from the tank without manufacturer's instruction.

Features

  • Septic Tanks are specially designed and manufactured for underground use to withstand the extreme corrosive soil conditions and environments.
  • Smooth internal black coating prevents bacteria and algae growth inside the tank.
  • Four or more layers (according to tank size) of fiber mat for better strength.
  • Inlet, outlet and drain connections for easy installation.

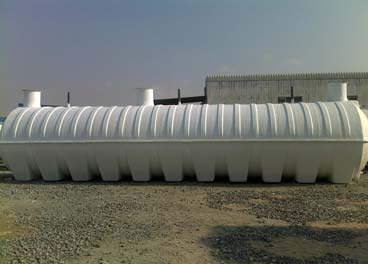

GRP SEWAGE TANK

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uaeFiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

In EFG, GRP Sewage tanks for sewage treatment are manufactured with two chambers, the first offering primary settlement of wastewater and sewage, and the second allowing further settlement before discharge of treated water, usually into a soak away.

Technical Specifications

  • Choice of inlet/outlet pipe work configurations.
  • Full specification and discharge consent advice, as well as information on environmental regulations available from the under team of technicians.

In City Lamination over concrete surface of Sewage Tanks will be done by adopting following methods.

GRP DIESEL TANK

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

These tanks are specially made to withstand chemical resistance. Also available in various capacities from200 U.S Gallons to 20000U.S Gallons. These tanks are leak proof, corrosion and rust free.

Method of specifications

  • Usage: Storage of diesel.
  • Type: Circular Horizontal.
  • Capacity & Dimensions: As per our Drawings.
  • Finish: Internal Surface Smooth gel coat mould finish.
  • External surface top coated wax added rough finish.
  • Color: Black Pigmented.
  • Manhole & Cover: Built-in GRP Manhole Frame with GRP Manhole Cover. Size: 500mm Dia. The GRP Manhole Cover is heavy duty.
  • Top Hat Ribs: Tanks have built-in GRP top hat ribs. These ribs provide additional strength and resist deformation. No internal stiffeners are used.
  • Pedestals: GRP pedestals are externally laminated to the tank body. GRP pedestals are separately molded and are strong enough to support the weight of the tank. As the pedestals are externally laminated to the tank body, the tank can be completely drained out.
  • Fittings: Tanks have special strengthened areas for fittings as built-in shape as part of the tank. Tanks are provided with overflow, drain supply and delivery fittings. The fittings are of UPVC. The size of the fittings is specified in our drawing, as per the capacity of the tank. The tank shall have 2 No’s UPVC Air Vents for air ventilation.
  •

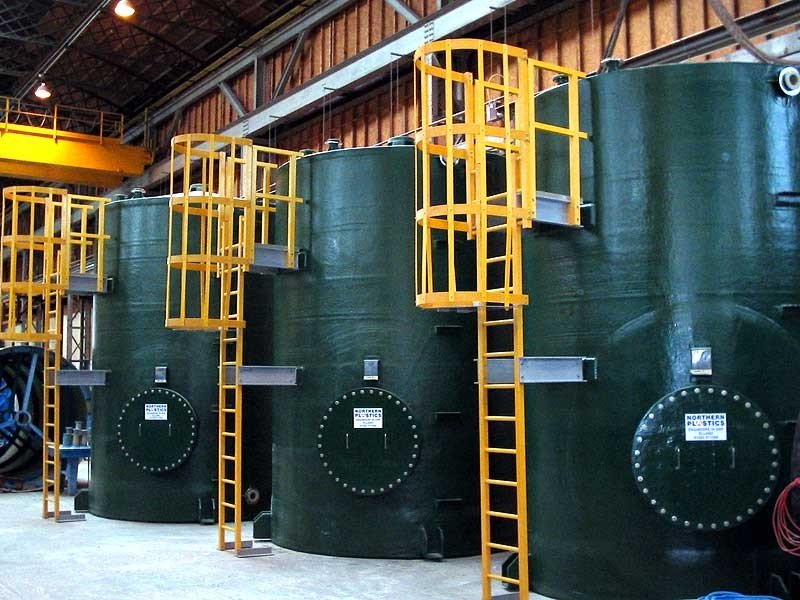

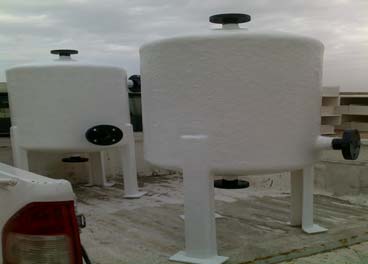

GRP CHEMICAL TANK

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Eissa Fiber Glass water storage tanks are produced with the help of rotational molding technique. The material used for manufacturing the tank is H.D.P.E (High Density Polyethylene). EFG chemical are made from the latest plastic raw material H.D.P.E. This material provides superior stress cracking and chemical resistance, unmatched low temp, impact and good toughness properties. The present H.D.P.E. is 100% improved virgin material. The world looks forward to the latest technology & best quality. Our tanks are used for aboveground applications for storage of chemicals such as HCL, NaOCl, NaOH, Cl2, H2SO4, etc.

Material Properties

  • Density : 0.939
  • Tensile Strength, at yield, 2% min : 2900
  • Flexural Modulus : 121000
  • Low Temp : 70
  • ESCR (100% LGEPAL, F 50) HRS >1000) Elongation, at Break, % 600
  • Heat Distortion Temp : 64
POLYETHYLENE OR PLASTIC TANKS

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Eissa Fiber Glass has an excellent wing of experienced personal for making the moulds. So that the quality of the end product is in no doubt.We use SS and MS sheets for it mould making. With our innovations in the designs and the ability of our staff, we are able challenge all the factors of the conventional moulds such as shape, size appearance, heat transfer etc.

Specialities

  • High Quality: Polyethylene used is approved by food and drug administration.
  • Clean and Hygienic: Smooth inner layer resists the existence and prevalence of bacteria algae, fungus and enhances the portability of water. It also ensures no smell, no color and no taste.
  • No Temperature Fluctuation: The black middle layer resists the heat and the water in the tank remains cool and the specially designed outer layer (U.V-stabilizer) off-sets the ultra-violet rays.
  • No rust No Corrosion: Raw material used in the manufacturing ensures corrosion free and rust free storage.
  • Leak Proof: Single piece molded body ensures, no joints, no leakage and 100% maintenance free water storage.
  • Strong and Secure: Special circular and vertical ribs ensure the resistance against the environmental stress and high liquid pressure, i.e. there will not be any cracks in the body, and ensures long life.
  • Easy to Install and Highly Adaptable: Lightweight tanks are designed for easy handling and Installation. It is not only convenient to handle but also adaptable to different application such as in Households, Irrigation, Institutions and Factories etc. and suitable for overhead and underground applications.
  • Available in many Sizes: Eissa Fiber Glass Tanks are available in the range of 100 gallons to 5000 gallons so that it can satisfy every one’s needs.
  • Supply with Valves: Outlet, Inlet, and overflow and Drainage valves. (According to users requirements).

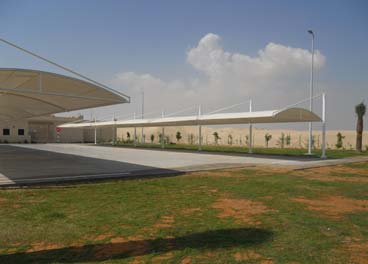

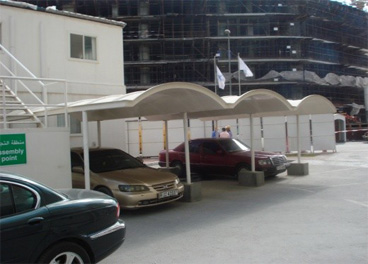

GRP CAR SHED

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

EFG had manufactured different types of Car sheds as per customer’s requirements.

Specifications

  • Design: As per drawing
  • Thickness: 4-5mm GRP
  • Finish: Smooth glass finishing inside & smooth gel-coat finish on outside
  • Color: White pigmented color or any other color as per your requirement
  • Materials of Construction: Iso-phthallic Polyester gel-coat two coats reinforced with fiberglass surface tissue ‘’C’’ glass would form the surface of GRP roofs. This would provide good looks and smooth decorative finish. All raw materials used in purchased from leading companies of the world and they conform to the relevant specifications. Polyester resin- BS 3532, Fiberglass- BS 3496.
  • Roof: GRP Roof Thickness would be built up using layers of fiberglass chopped strand mat.300gm/m2 and 450 gm/m2 E-glass impregnated with ortho-phthallic polyester laminating resins
  • Pillars: 75mm diameter GI pipes are used as our standard pillars. But 100mm diameter pillars are available upon request. The height of the pillar depends upon the site conditions and location. All pillars would be primed and painted with alkyd based enamel paint. Epoxy pain is available upon request. GI nuts bolts & washer used for fixing shall be of M-10x40mm
  • Foundation: Cement Concrete footing of size-40x40x50mm provided for foundation
  • Base Plate: 200x200mm size mild steel plate of 8mm thick used as base plate

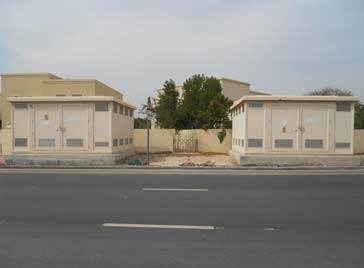

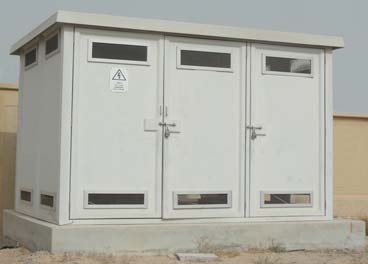

GRP KIOSKS

Main

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Eissa Fiber Glass had infinite range of GRP Kiosks offer a purpose built, economic solution to equipment or personnel housing requirements. Designed specifically to meet customer requirements, GRP kiosks provide a long term solution too many industrial and indeed commercial applications. Our unique manufacturing methods allow us to construct GRP kiosks up to 50m in length, 12m in width and approximately 6m high. For larger GRP Kiosks, multiple panel design configurations are utilized to overcome mould restrictions.

Structural Design

All GRP kiosks are designed in accordance with current legislation and European and British standards.

EISSA FIBER GLASS OTHER GRP PRODUCTS

GRP Cabinet & Enclosures

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Comprehensive range of GRP Cabinets and Enclosures up to the customer requirement suitable for Indoor and outdoor installations. All enclosures are completely finished in plant prior to dispatch. The enclosures will have smooth mould finish externally and coated hand layup finish internally.






Standard Features

  • Stainless Steel / Brass hinges.
  • EPDM Gasket / PVC Foam seal.
  • High Impact Resistance.
  • Thickness : 6mm at stressed points and 4mm elsewhere.
  • Smoothing glossy finish externally.
  • UV resistant & opaque.

Cladding Pannels & Columns

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Eissa Fiber Glass GRP or Glass Fiber is a low cost, low maintenance, long lasting and versatile material capable of a wide variety of uses. Due to the fact that it is extremely light, fire resistant, and also extremely strong, it is ideal for use in vehicle conversions.

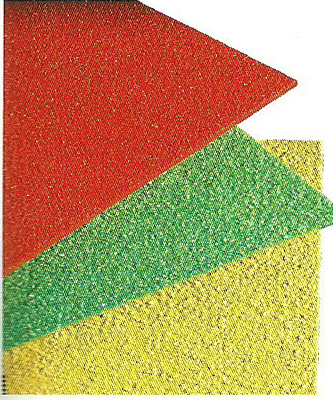

Floor Plate

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Floor Plates are manufactured by up multiple layers of fiberglass reinforcement and specially formulated resins. The result of this process is a composite panel offering both by directional strength and corrosion resistance. These designed products are non-porous and are easily cleaned by high pressure washer and can withstand cleaning solutions.

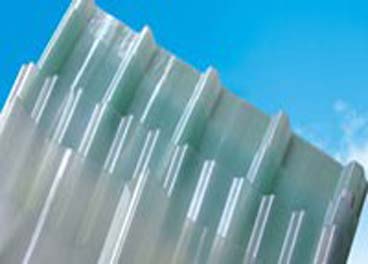

GRP Corrugated Sheet

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

Eissa Fiber Glass GRP or Glass Fiber is a low cost, low maintenance, long lasting and versatile material capable of a wide variety of uses. Due to the fact that it is extremely light, fire resistant, and also extremely strong, it is ideal for use in vehicle conversions.










Technical Specifications

  • Usage: Roofing
  • Material used: GRP (Fiberglass)
  • Type: Rectangular with Corrugated in shaped
  • Dimensions: Size: 4’ x 10’
  • Thickness: 2.5MM
  • Finish: External /Top Surface Smooth gel coat mould finish
  • Internal surface top coated wax added rough finish.
  • Color: As per client’s requirement

Others

Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

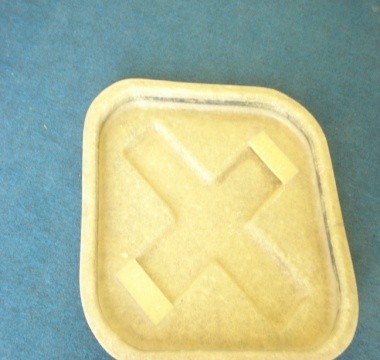

Manhole Cover
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

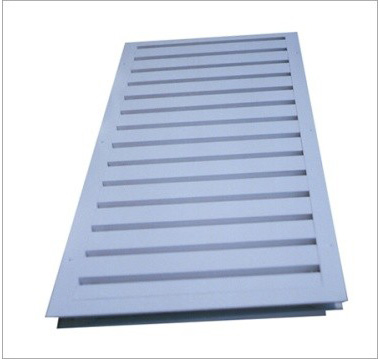

Sand Trap Louver
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

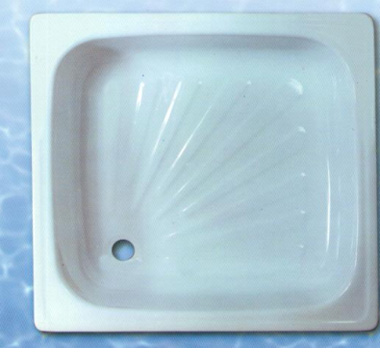

Shower Tray
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

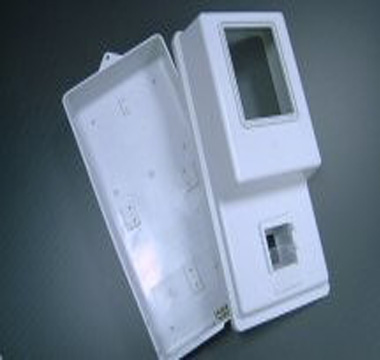

Meter Box
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

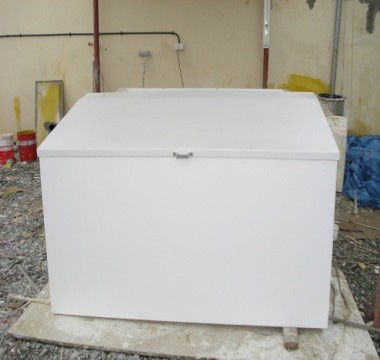

GRP Plant Room
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

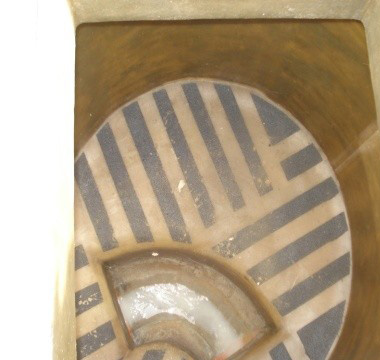

Under Ground Manhole
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae
Pipe Lamination
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

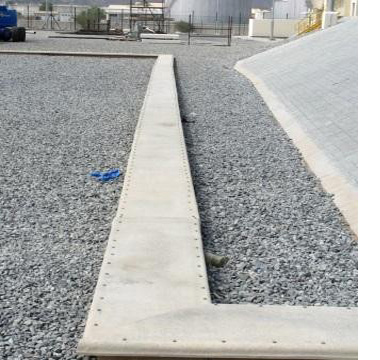

GRP Chemical Gutter
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

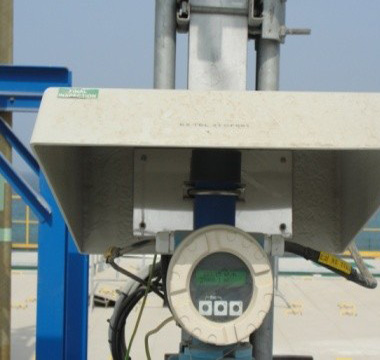

GRP Sun Shade
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae

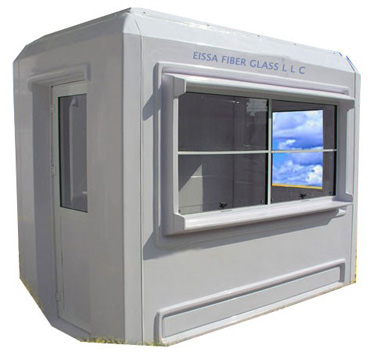

Security Cabin
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae
Bath Tub
Fiber Glass Company  in UAE , grp company in uae, grp panel tank in uae
GRP Filtration Tank
